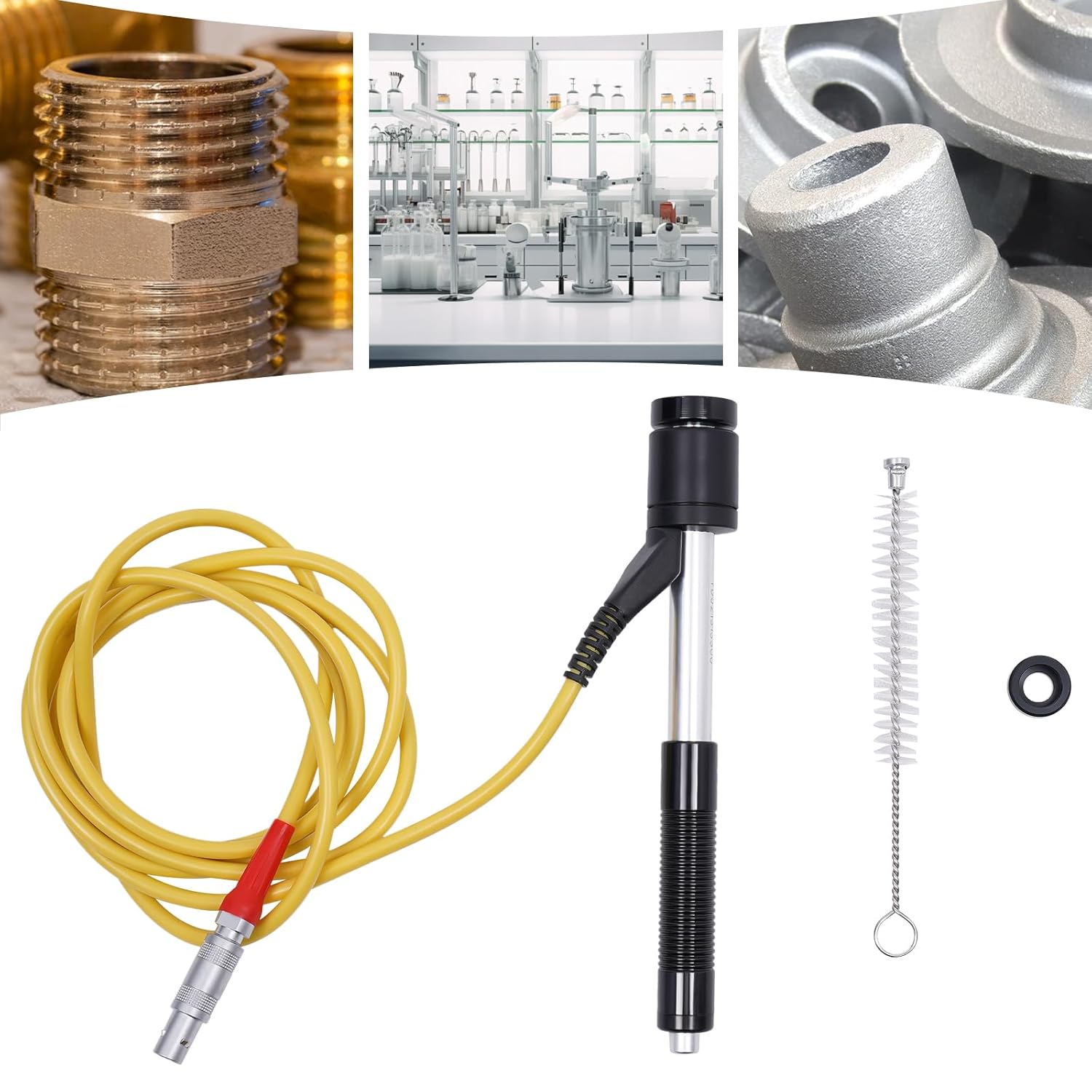

Portable D-Type Impact Device for Hardness Testing up to 940HV - 11mJ 1600HV Tungsten Ball Head NDT Tool, Portable Leeb Hardness Tester D Type Impact Device for Material Research & Testing Labs

DescriptionThis D-type impact device is capable of measuring the hardness of a wide range of materials up to 940HV hardness, providing you with accurate data. It adopts a 1600HV tungsten steel ball head with high precision and a wide measuring range, which is a necessary tool in the field of material research, testing, and evaluation. It helps easily realize material hardness testing, improve work efficiency and testing accuracy, and help you easily cope with various material hardness testing tasks.DetailsLong Connection Cable: It makes it more flexible to connect and use, bringing more convenience to your operation.Smooth Edges: The smooth and burr-free edges better care for your skin when using it.ApplicationIt is suitable for testing the hardness of workpieces up to 940HV and is suitable for materials research, experimentation, and professional learning.SpecificationsColor: Yellow, Black, SilverMaterial: Iron, Aluminum, Tungsten CarbideProcess: High-temperature Quenching, ElectroplatingAssembly Required: YesImpact Energy: 11mJBall End Hardness: 1600HVBall End Diameter: 3mm/0.12inchImpact Device Diameter: 20mm/0.79inchImpact Device Length: 147mm/5.79inchMaximum Workpiece Hardness: 940HVWorkpiece Average Surface Roughness(Ra): 1.6μmDirectly Measurement: ＞5kg/11lbsStable Support Requirement: 2-5kg/4.4-11lbsMinimum Thickness of Hardening Layer: ≥0.8mmConnection Cable Length: 1.5m/4.92ftPackage Included1*D-Type Impact Device1*Connection Cable1*Brush1*Support RingNotes1.Please check the size carefully before ordering.2.The digital gauge is not included so you need to prepare one yourself.

• 【Excellent Performance】It comes with a high hardness(1600HV) tungsten carbide ball head for a large range of materials hardness testing. You can connect it with a hardness testing gauge(not included) to quickly test the hardness of your workpiece, which saves you great effort and time.
• 【Simple Operation】You just need to connect it with a digital gauge(not included) and then hold it on the object and press to get the hardness data. The device allows for 360° hardness testing.
• 【NTD Testing】This testing principle won't damage the surfaces of your objects, so you can use it with confidence.
• 【High-quality Material】The premium aluminum, iron, and tungsten carbide materials and electroplating and high-temperature quenching processes make our product high-strength and rustproof, making it practical for a long time.
• 【Simple Assembly】Its simple structure and complete accessories make it easy for you to assemble it.
