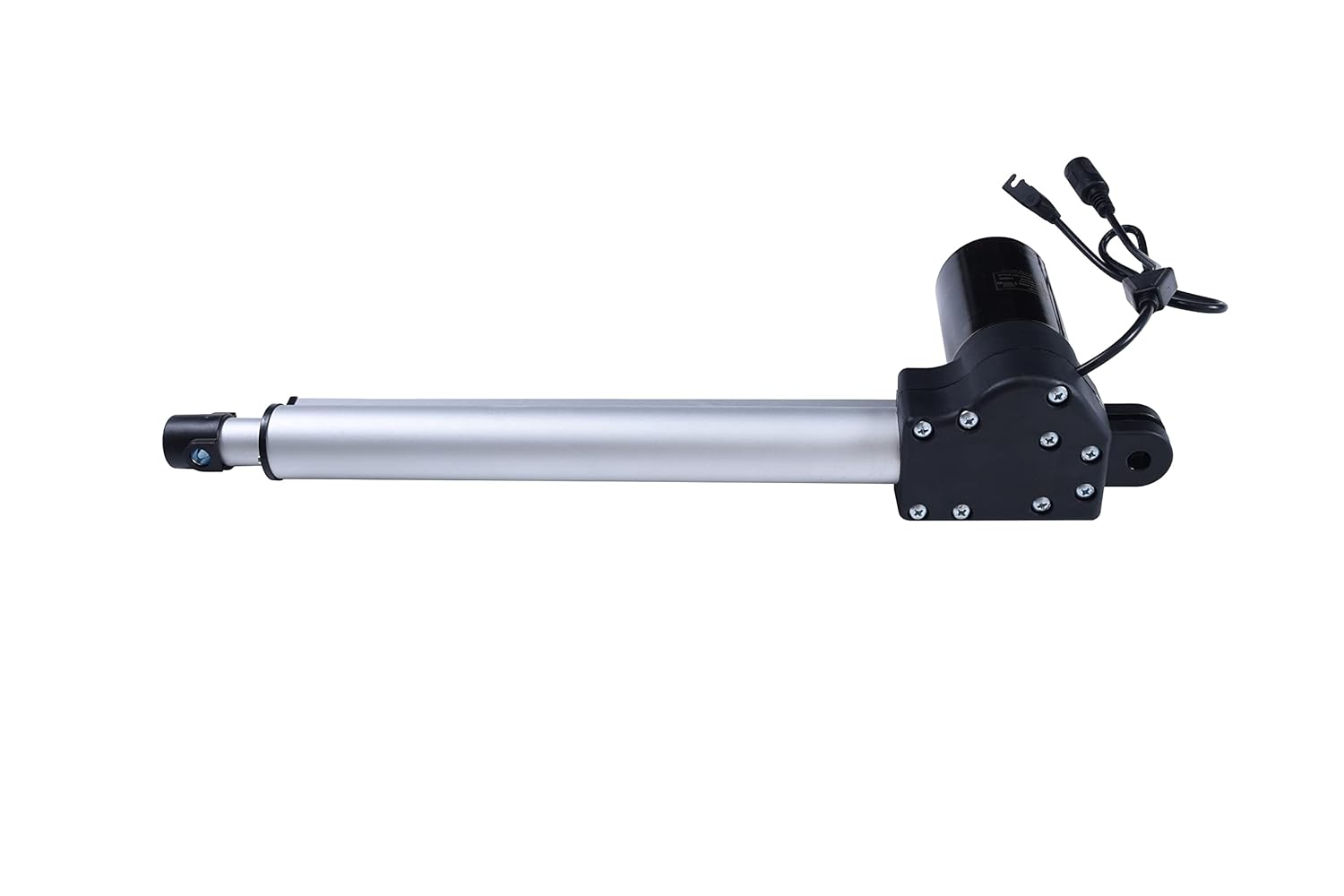

Okin Motor JLDQ-10 & JLDQ.10.435.250H Power Recliner Actuator Replacement, Lift Chair Sofa Bed Part Replacement for JLDQ.19B.435.250D, JLDQ.10.435.250, JLDQ.3.435.250, 1.28.000.110.30

Okin Refined-R Model: JLDQ.10.435.250H Recliner Motor. This is original Okin JLDQ motor, adapt for model JLDQ.19B.435.250D02/03/04, JLDQ.10.435.250, JLDQ.3.435.250, 1.28.000.110.30 series. Technical data: Load: Push force 1000N, Pull force: 1000N Stroke: 250 mm, move with slide block Operation frequency: On 1 min/Off 8min This motor is suggested to replace OKIN single motor, model JLDQ.10.435.250H, and also canl replace JLDQ.19B.435.250D02/03/04, JLDQ.10.435.250, JLDQ.3.435.250, 1.28.000.110.30 series, a little difference, but no affect for use.

• APPLICATION: Different actuator/motors are not compatible with frame, the frame has strict demand for actuator/motors' minimum install dimension, stroke and plugs, please check your motor brand and model first. This motor is suggested to replace OKIN single motor, model JLDQ.10.435.250H, and also canl replace JLDQ.19B.435.250D02/03/04, JLDQ.10.435.250, JLDQ.3.435.250, 1.28.000.110.30 series, a little difference, but no affect for use.
• DESCRIPTION: The actuator motor set is made of 1 motor and 2 connectors, connector with 5-pin round plug is for switch hand control, connector with 2-pin square plug and clip is for power supply.
• SPECIFICATION: Appearance: black (PA), silver white (aluminum); Stroke: 250mm ; Minimum dimensions (shrink): 435mm; Maximum dimension: 685mm; Load: push force: 1000N, pull force: 1000N.
• NOTE: Please troubleshoot the switch and power supply first, then check the motor and plug, see if it matches your recliner motor.
• PACKAGE: 1* Okin refined motor. Easy to install.
