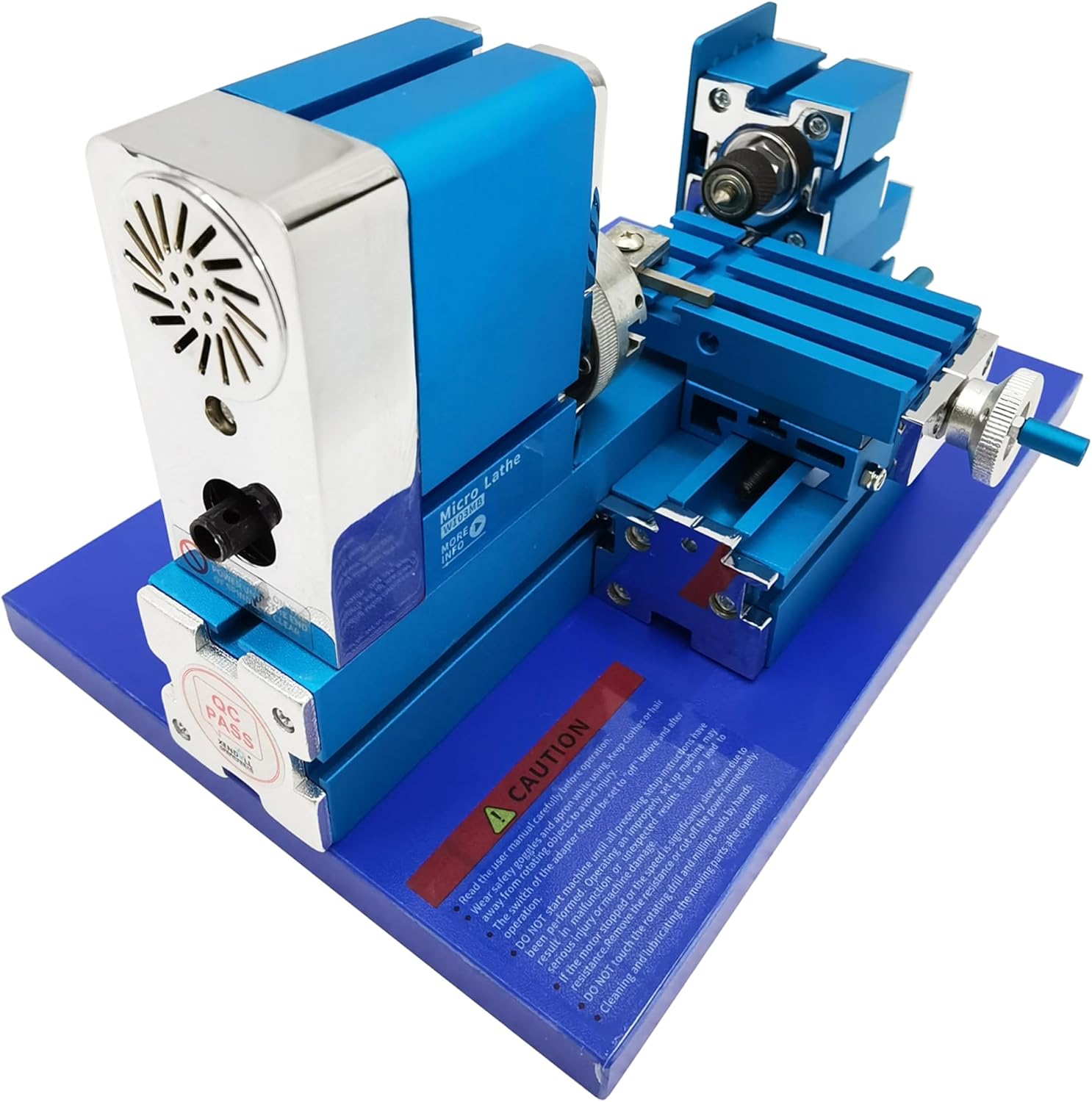

INTSUPERMAI Mini Metal Lathe Machine DIY Mini Metal Wood Turning Lathe Machine for Woodworking Craft Soft Metals Plexiglass Plastic

Product Parameters Input Voltage: AC100-240V Output Voltage: DC12V Direct Current: 4A Motor Rated Power: 36W Motor Speed: 20000r/min±15% Spindle Speed: 3000r/min±15% Spindle Jump: <0.004"(0.1mm) Spindle Bore: 0.3"(8mm) Large Slider Stroke (Z axis): 1.8"(45mm) Small Slider Stroke (X axis): 1.4"(35mm) Center Distance: 4.3"(110mm) (Optional: Extra long machine bed for 13"(330mm)) Center Height: 0.98"(25mm) (Optional: intermediate block for center height up to 1.8"(45mm)) Chuck Diameter: Positive claw: 0.5"(13mm) / Reverse claw: 1.8"(45mm) Maximum Processing Diameter: Positive claw: 0.08"-0.55"(2-14mm) / Reverse claw: 0.63"-1.57"(16-40mm) Maximum Processing Length: 4.3"(110mm) Turning Tool Size: 0.14"*0.14"(3.5mm*3.5mm) Handle Scale: 0.004"(0.1mm)/division Chuck & Collets Size: ф0.04"/0.08"/0.1"/0.12"/0.14"/0.16"/0.2"/0.24"(ф1mm/2mm/2.5mm/3mm/3.5mm/4mm/5mm/6mm) Processing Ability: It can process wood, plastic and soft metals (pure copper and pure aluminum) Package Size: 13.4"*9.1"*9.1" (34cm*23cm*23cm) Net Weight/Gross Weight: 12.8lbs(5.8kg)/13.9lbs(6.3kg)

• High Accuracy Chuck: Three-jaw self-centering chuck has gone tested with accuracy and repeatability to set materials steadily. Clamping of the workpiece is achieved by rotating the chuck itself, thus improving the stability and precision of machining
• All-metal Tailstock: The tailstock is used to support longer workpieces and can also be fitted with centers and drills for hole machining, ensuring the stability of the workpiece during machining and improving machining accuracy and efficiency
• Mini Metal Lathe Parameters: Motor Speed:20000r/min±15%, Spindle Speed: 3000r/min±15%, Spindle Jump: <0.004"(0.1mm), Spindle Bore: 0.3"(8mm), Large Slider Stroke (Z axis): 1.8"(45mm), Small Slider Stroke (X axis): 1.4"(35mm)
• Handle Size: Maximum Processing Diameter:Positive claw: 0.08"-0.55"(2-14mm) / Reverse claw: 0.63"-1.57"(16-40mm), Maximum Processing Length: 4.3"(110mm), Turning Tool Size: 0.14"*0.14"(3.5mm*3.5mm)
• High Quality Headstock: The headstock provides a solid structure to support the spindle, ensuring its stability and accuracy during high-speed rotation. Designed with heat dissipation holes, it can timely discharge the heat generated by the operation of the main shaft
