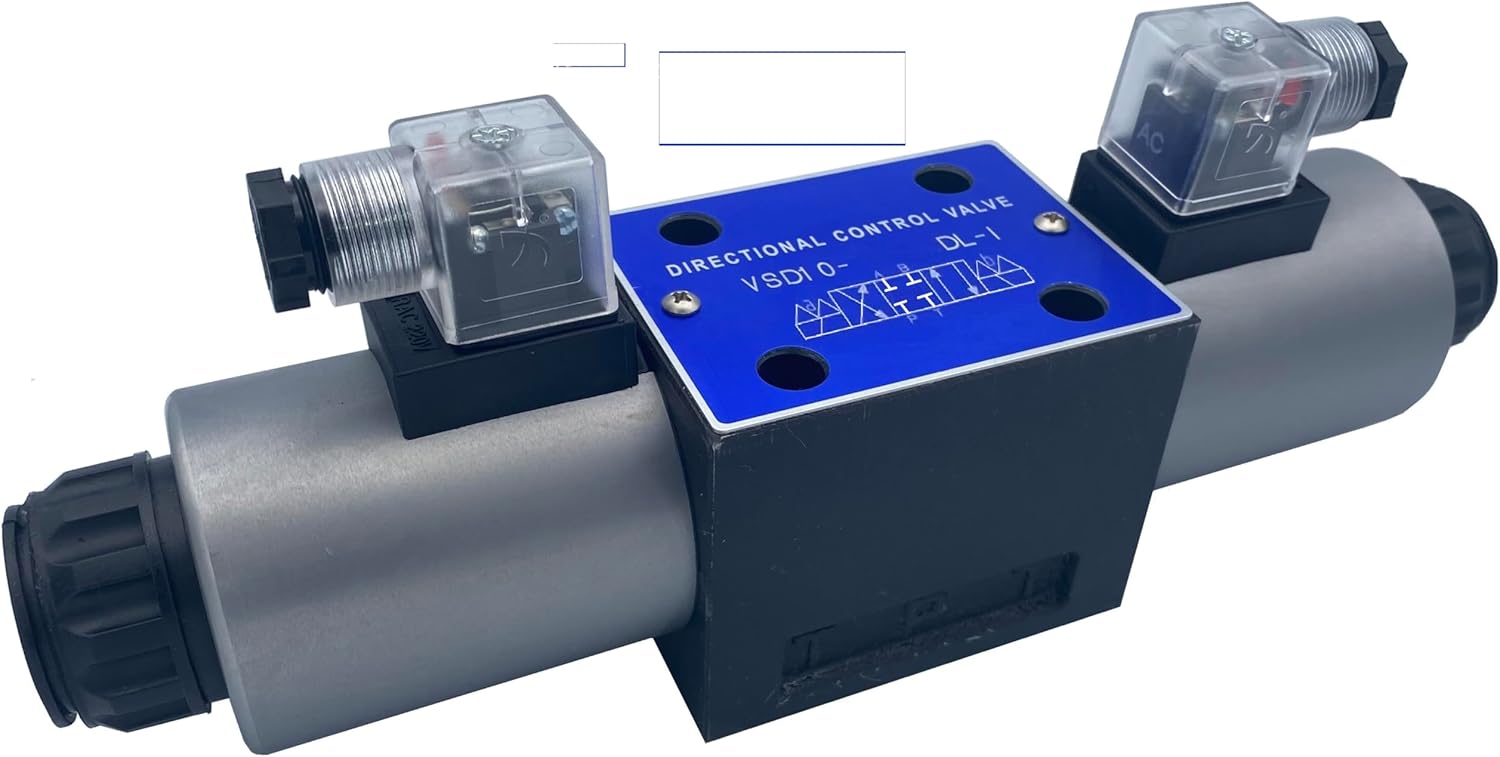

Hydraulic Electric Solenoid Valve D05 (NG10) DIN Connector 31 GPM 4560 psi (110VAC, C-Closed-All Ports Closed in Center Position)
Product details
| Management number | 221089587 | Release Date | 2026/05/03 | List Price | US$74.00 | Model Number | 221089587 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Hydraulic Directional Control Valve – Solenoid Operated. Control hydraulic cylinder or motor movements. Proven high quality robust valve design successfully designed into many high volume applications. Can be mounted to standard available D05 (NG10) sub plates and bar manifolds. Maximum flow of 31 gpm Maximum working pressure = 4560psi (315 Bar). 3-position with automatic spring return of spool. White label with no logo for OEM manufacturers.
- Fluidhaus valve coils are fully encapsulated by injection molding. This is a more reliable sealing process than traditional potting, with better protection against moisture, vibration, temperature and provides greater life cycles.
- Rated IP65 for dust and water resistance.
- Includes lighted DIN connector for each coil. LED illuminate’s clear connector housing when power is supplied to the connector/coil.
- Used in mobile, industrial. automation and construction equipment
- Purchase Fluidhaus sub plate series SA10 separately.
- Solenoid Power: DC= 30 watts, AC = 50VA (220VA inrush)
- Operating temperature = -22֯F to 174֯F
- Valve can be mounted in any direction.
| Size | 110VAC |
|---|---|
| Brand Name | Fluidhaus |
| Unit Count | 1.0 Count |
| Valve Type | spool valve |
| Thread Size | 1/4 NPT |
| Thread Type | NPT |
| Manufacturer | Fluidhaus |
| Model Number | VSD10 |
| Material Type | Metal |
| Connector Type | DIN |
| Item Type Name | Hydraulic Electric Valve D05 (NG10) size |
| Exterior Finish | Uncoated Metal |
| Item Dimensions | 11.62 x 2.76 x 4.29 inches |
| Number of Ports | 3 |
| Maximum Pressure | 4560 Pound per Square Inch |
| Specification Met | IP65 |
| Included Components | Mounting Bolts |
| Manufacturer Part Number | VSD10-C-110DL-I |
