70/10 uF 70+10 MFD 370V or 440V CBB65 Dual Run Start Round Capacitor 70 10 uF MFD 370 440 Volt VAC for Condenser Straight Cool or Heat Pump Air Conditioner

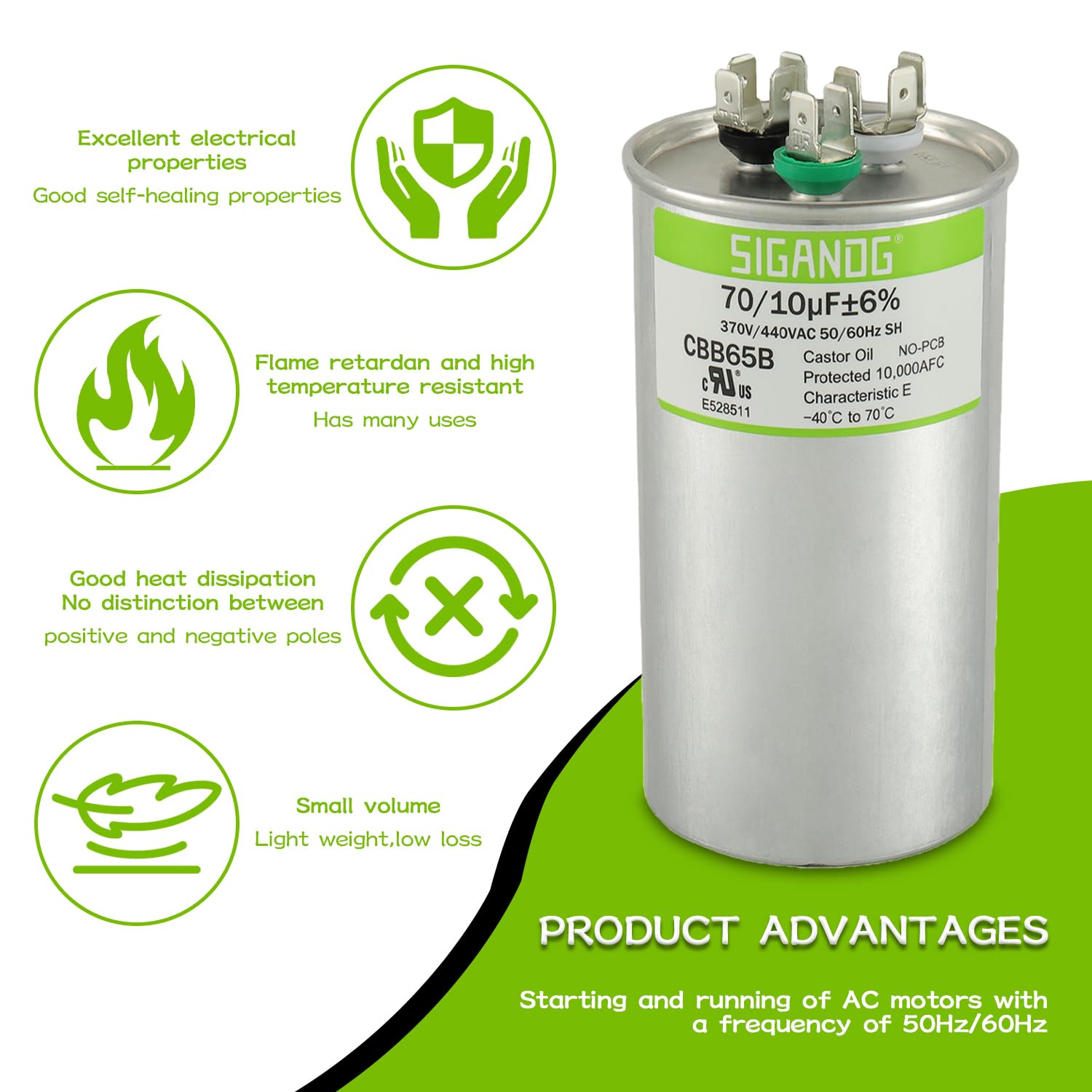

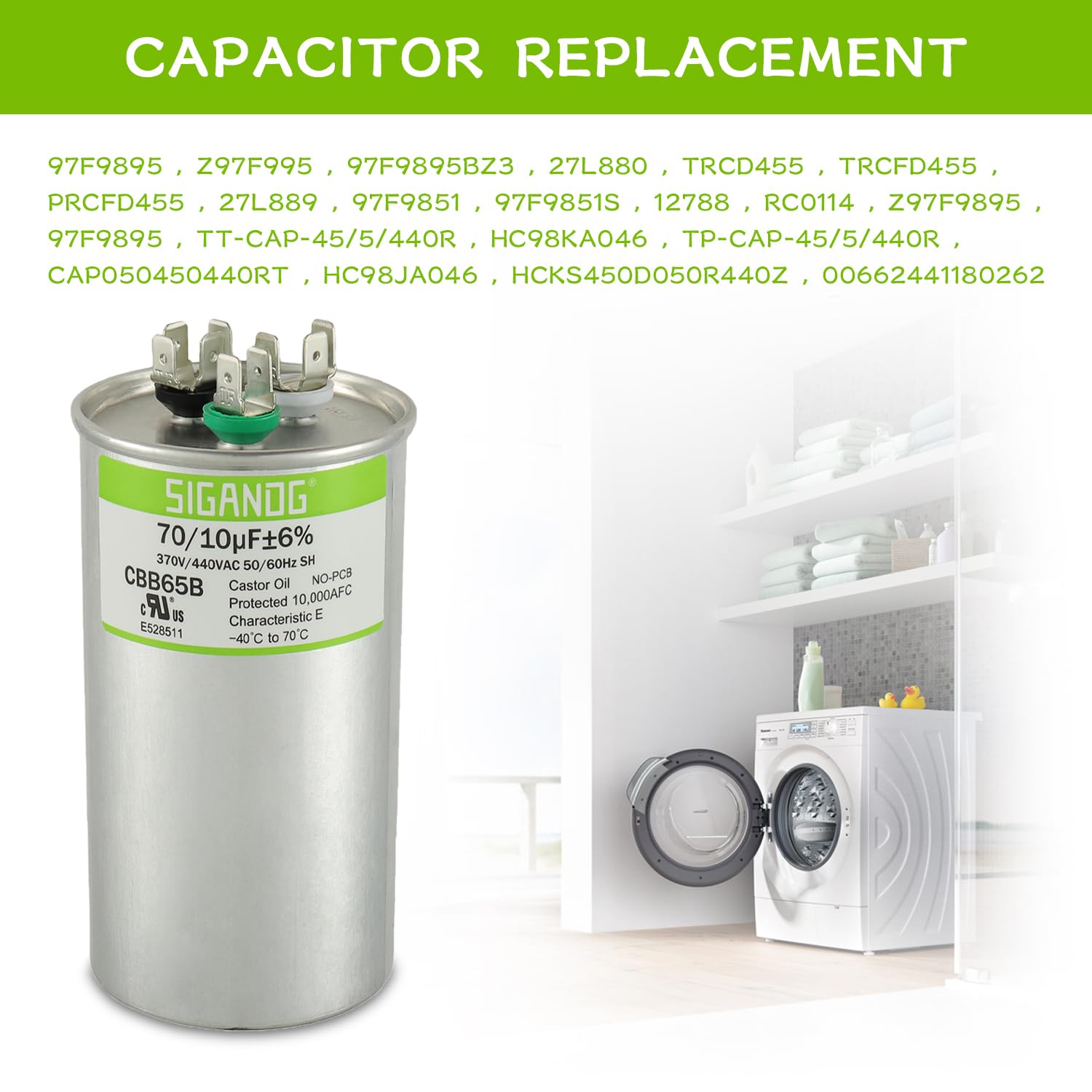

SIGANDG CBB65 AC Motor Run Capacitors 80+7.5 UF 80/7.5 MFD 370/440VAC Model: CBB65 (Universal model) Tolerance: ±6% Capacity: 70/10uF Rated Voltage: 370/440V AC Frequency: 50/60Hz Shell Material: metal Dielectric Material: metallized polypropylene film Use: This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz such as air conditioners, compressors and motors. Strong Point: It is small in size, lightweight, heat resisting and anti-explosion. Principle: A dual "run capacitor" supports two electric motors, such as a fan motor and a compressor.Dual run round capacitors are used to start and run the unit more efficient.It saves space by combining two physical capacitors into one case. Replacement: Capacitors can be used to substitute oval shape one with the same MFD and Volt specs. A 440 volt capacitor can be used in place of a 370 volt, as it is build better, but the 370 can’t be used in place of a 440 volt.

• SIGANDG 70+10uF ±6% 370V/440V AC Capacitors, CBB65 Dual Run Round Capacitor, used in the air conditioners, compressors and motors
• Operating Temperature: -40℃ to +70℃ / -104℉ to +158℉
• Safety Protection Level: S1.Engineered for Safety 10000 AFC Anti Explosion Pressure Switch
• Dimension: diameter 2.36 inch, height 4.33 inch

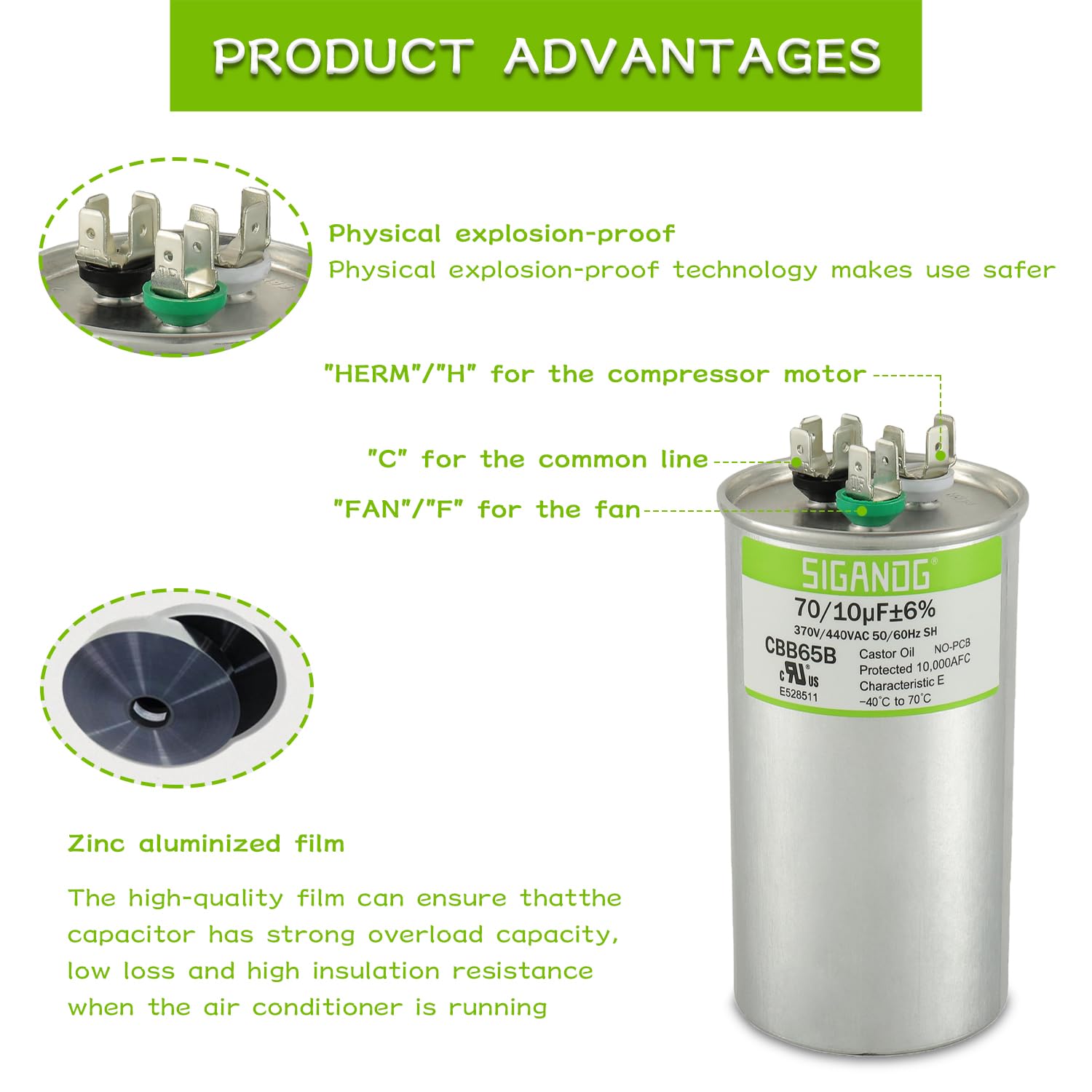

• Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
