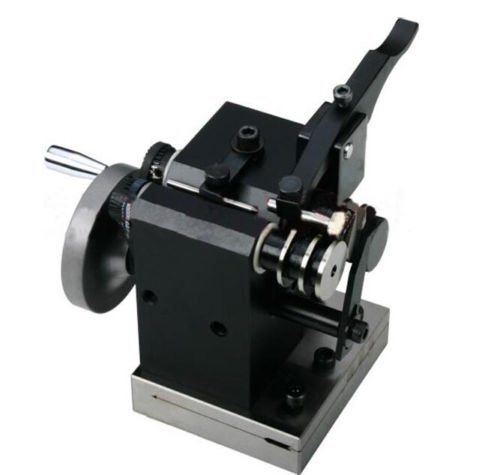

0.002mm Mini Punch Pin Grinder Grinding Needle Machine CNC Turning Tool

Features 1.PGAS small punch grinder, used in conjunction with a surface grinder for ultra-small precision of the red needles (0.5-10mm processing) abrasive use 2. Using a simple push wheel, no correction center, can be easily precision grinding 3. Punch Pin outer diameter is smaller, the pressure may be appropriate arm of the adjusting screw, to avoid too much pressure to prevent deformation of red needles Parameter: Concentricity: 0.002-0.005mm Roller deflection accuracy: 0.005-0.002mm Roller clamping range diameter: 0.5-10mm Roller clamp: 10mm Product hardness: HRC60-62 degrees Roller material: SKS3

• 1. Concentricity: 0.002-0.005mm； Roller deflection accuracy: 0.005-0.002mm.
• 2. Roller clamping range diameter: 0.5-10mm；Roller clamp: 10mm.
• 3. Product hardness: HRC60-62 degrees；Roller material: SKS3.

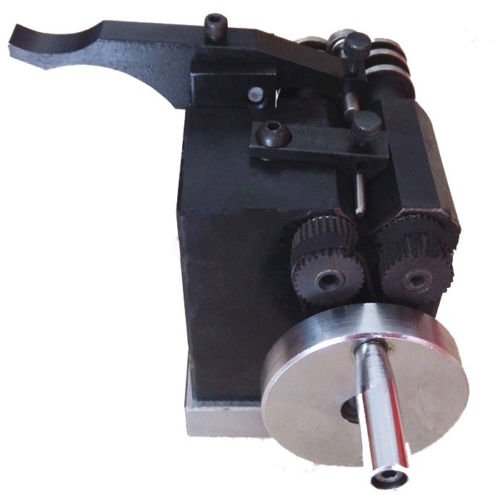

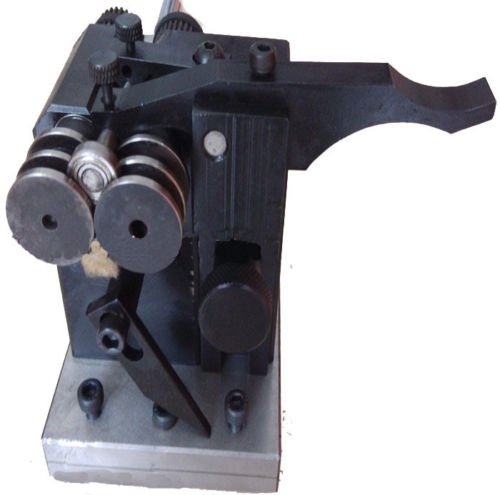

• 4. Hard double guide wheel design: The rollers are quenched and hardened, and the double roller design can automatically grind concentric circles without any adjustment.
• 5. Application: Mini Punch Pin Grinder can be widely used for precision machining such as various grinding processes, tool grinders, milling machines, planers, drilling machines, etc.
